In the field of high-end electric heating elements, MCH (Metal Ceramic Heater) is rapidly becoming the preferred solution for ceramic heating projects, thanks to its extreme thermal efficiency and exceptional miniaturization capability.

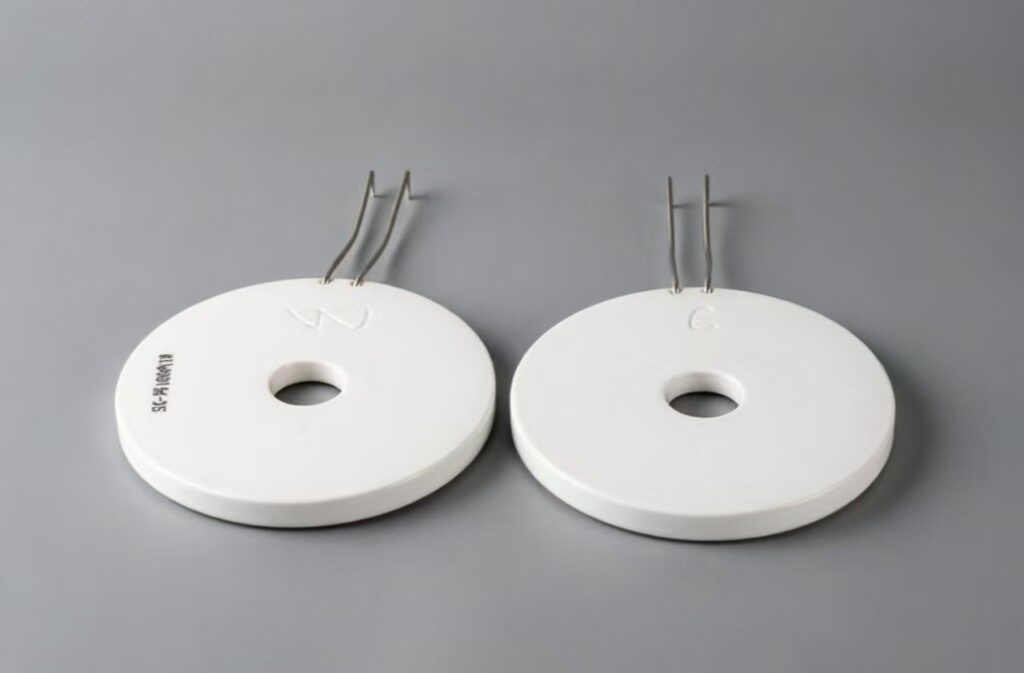

Unlike conventional PTC heating technology, MCH utilizes the high-temperature co-fired ceramic (HTCC) process, which seamlessly integrates metal conductors into an alumina ceramic substrate. High-melting-point tungsten (W) or molybdenum-manganese (Mo/Mn) pastes are precision‑printed onto 96% alumina tape‑cast green sheets according to the predetermined circuit pattern. The printed circuit layers are then stacked with insulating layers and bonded under high temperature and high pressure. The entire assembly is sintered at approximately 1600°C. During this sintering process, physicochemical reactions take place between the metal and the ceramic, forming a dense, robust, and inseparable monolithic structure.
SIMNOMAS, as a professional MCH provider, offers precise customization services with low minimum order quantities – any volume can be accommodated.

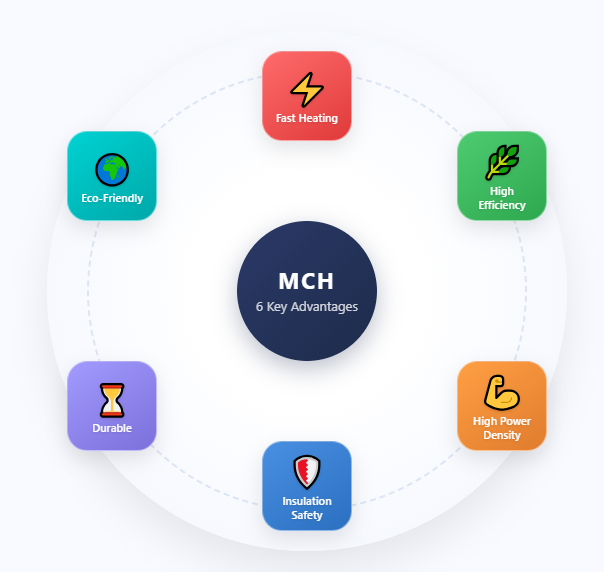

Performance Advantages – Why MCH is Synonymous with Efficiency and Energy Saving
Compared with traditional resistance wire heaters and even some PTC solutions, MCH ceramic heaters deliver overwhelmingly superior performance. Key advantages include:

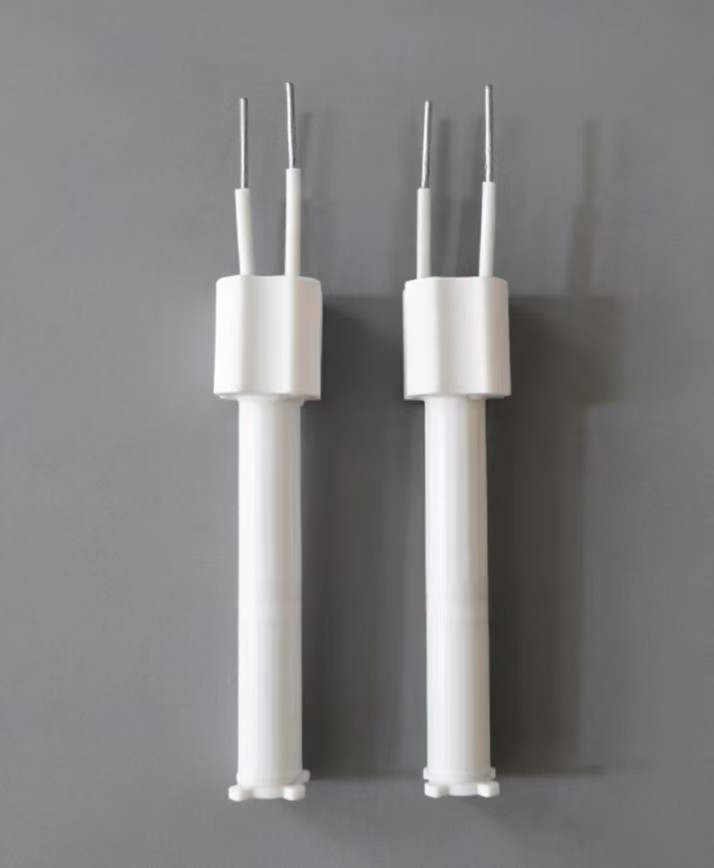

- Ultra‑fast thermal response – heats up in seconds. Special models can reach over 600°C within 10 seconds under no‑load startup, and tubular heaters can achieve up to 1000°C. → Instant‑on, no preheating required, greatly enhancing user experience.
- Exceptional thermal efficiency – saves 20%–30% more energy per unit of heat output compared to traditional PTC heaters. → Reduces operating costs and aligns with green, low‑carbon trends.
- High power density – up to 30–60 W/cm², delivering high power in a compact size – critical for device miniaturization and lightweight design.
- Superior insulation – withstands 3700V/1s high‑voltage testing with leakage current <0.5mA, and the surface remains electrically safe. → Eliminates shock hazards, ideal for bathroom and medical applications.
- Anti‑aging and durable – no power degradation over long‑term use, resistant to acid/alkali corrosion, and exceptionally long service life. → Reduces maintenance and replacement costs.
- Eco‑friendly and non‑toxic – completely free of lead, cadmium, mercury, and other hazardous substances, fully compliant with EU RoHS and REACH directives.
Application Map – From Personal Care to Industrial Intelligence
In recent years, the application scope of MCH ceramic heaters has expanded rapidly. As a professional MCH supplier, SIMNOMAS offers customized solutions for the following key segments:
- Personal Care & Beauty (high‑burst‑power demand)
- Hair styling tools – straighteners, curling irons. MCH’s second‑fast heating eliminates user waiting time.
- Health devices – infrared therapy units, intravenous fluid heaters (precise temperature control).
- Small Appliances & Kitchen Electronics (energy‑efficient demand)
- Instant‑heating devices – tankless faucets, instant water heaters, electric kettles, coffee machines – delivering hot water on demand.
- Environmental appliances – fan heaters, clothes dryers, hand dryers, air conditioner fan units.
- New Energy & Transportation (high‑temperature tolerance)
- Automotive electronics – cigarette lighters, portable in‑car mugs, auxiliary heating systems.
- Emerging DIY & Electronics
- Children’s hot‑melt glue guns, portable steam irons, heat‑erasable pen heating modules, and more.
